SG54
The SG54 zero-turn, stand-on sprayer builds on the efficiency of previous machines, offering a higher pump output of 40 gallons per minute and an increased liquid capacity to 100 gallons.
The 20.8 hp GXV630 Honda V-twin engine offers high horsepower, great adaptability, quiet operation, and excellent fuel efficiency. Standard accessories include the 2.5-gallon foam marker, 12’ boom, pressure control system, Hillside assist, and 100’ hose reel with roller guide and lock.
* Images shown are of a prototype and the production SG54 may differ slightly from the pictures.
* Limited quantities available. Contact a Steel Green representative for more information.
* Listed equipment prices are for standard models without attachments and do not include freight.
Specs
-
Spray Capacity 100 gal
-
Spray Width Up to 12’
-
Engine 20.8-HP Honda
-
Hose Reel 100’
Featuring
-

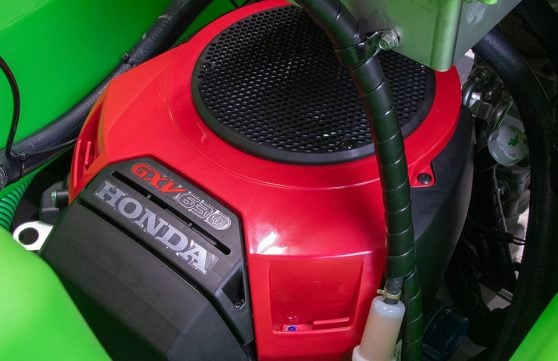

20.8-HP ENGINE
The 20.8 hp GXV630 Honda V-twin engine offers high horsepower, great adaptability, quiet operation, and excellent fuel efficiency.
-

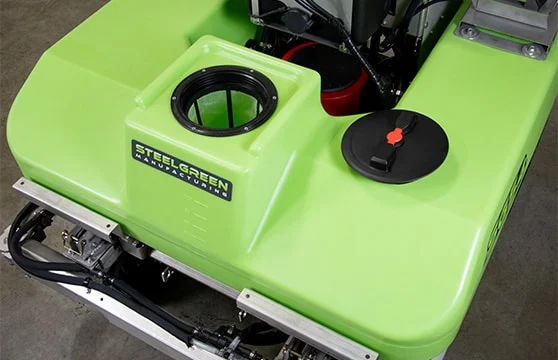

100-GALLON CAPACITY
The SG54 offers a higher pump output of 40 gallons per minute and an increased liquid capacity to 100 gallons.
-

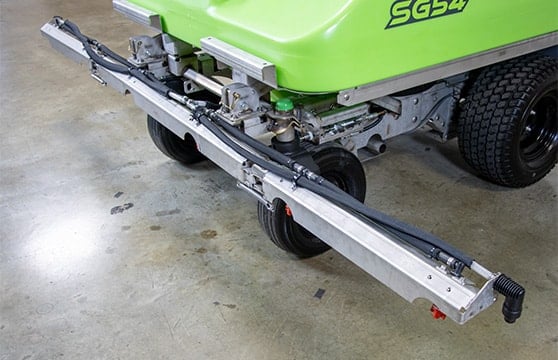

12’ BOOM
A six-nozzle, 12′ boom comes standard, increasing productivity and coverage. -

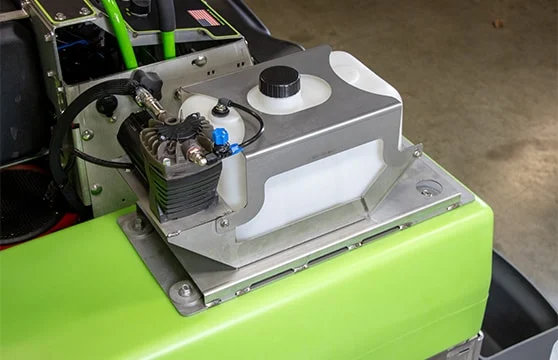

2.5-GALLON FOAM MARKER
Increase spray accuracy and prevent double coverage by marking the areas that have already been sprayed.
-

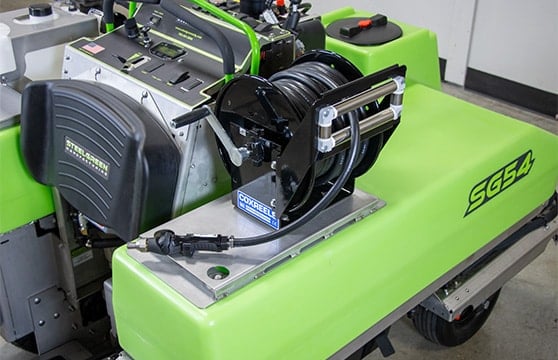

100’ HOSE REEL
Maximize coverage with the 100′ hose reel, featuring a roller guide, adjustable drag brake for tension, and pin lock that locks the reel in place to keep it from unrolling in transit.
-
PRESSURE CONTROL SYSTEM
Retain the desired spray pressure while turning on and off the nozzles.
-
HILLSIDE STABILITY ASSIST SYSTEM
Lock and unlock the front caster wheels for added hillside stability.
-
DRUM PARKING BRAKES
For brakes that hold (even on hills), our wheel motors have intergrated drum brakes on both sides.
-

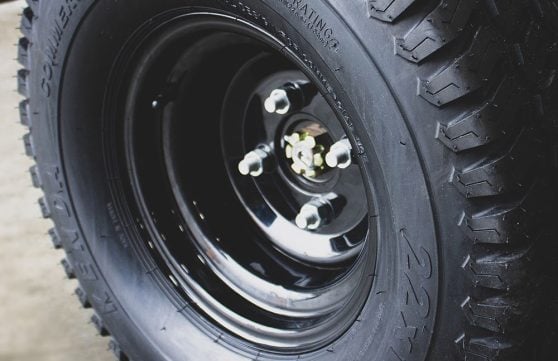

22” REAR WHEELS
22-inch commercial grade turf tires provide additional hillside stability and faster transport speeds.
-
Spray Gun
The hose reel is equipped with a stainless steel short-pattern nozzle, ensuring an even spray rate.
