SGXL
$38,000The SGXL is a 120-gallon zero-turn stand-on sprayer featuring a 14-foot, three-section, rear-mounted breakaway boom with electric hydraulic lift actuators that provide superior visibility to allow operators to monitor every nozzle’s performance. Other standard features include a 100-foot hose reel, 2.5-gallon foam marker, hillside stability assist system, pressure control system, and LED light bar.
Its size and versatility make the SGXL the perfect solution for many golf courses, sports fields, and commercial properties. With a 9-MPH transport speed and a higher pump output of 40 gallons per minute, the SGXL saves time at a time when efficiency is everything.
Optional SGXL Granular Attachment Kit includes a 350-pound hopper and lift system to convert the SGXL to a high-capacity spreader.
* The SGXL Granular Attachment Kit is an attachment option that does not come standard with the SGXL.
* Listed equipment prices are for standard models without attachments and do not include freight.
Specs
-
Spray Capacity 120 Gal
-
Spray Width 14'
-
Engine 35-Hp Kawasaki
-
Hose Reel 100'
Featuring
-

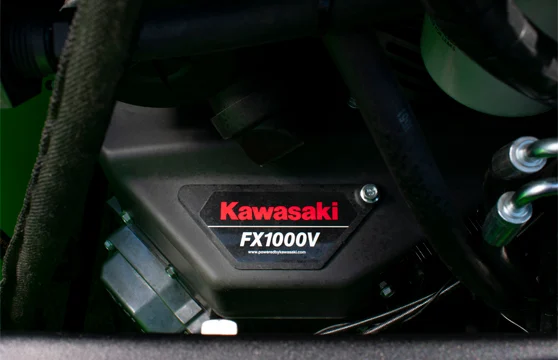

35-HP ENGINE
The Kawasaki FX1000V V-twin 4-cycle engine was designed to provide major muscle. It features three valves per cylinder, a twin barrel internally vented carburetor with fuel shut-off solenoid, and a shift-type starter.
-
120-GALLON CAPACITY
120-gallon spray tank gives the SGXL the highest liquid capacity of any Steel Green machine.
-
14’ THREE SECTION REAR-MOUNTED BREAKAWAY BOOM
Rear-mounted breakaway boom provides superior visibility, allowing operators to monitor every nozzle’s performance. Electric-hydraulic lift actuators make for easy lowering and raising.
-

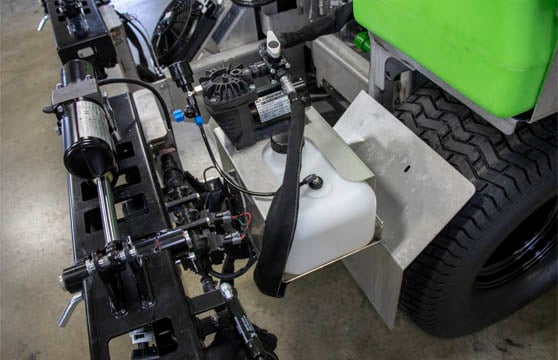

2.5-GALLON FOAM MARKER
Increase spray accuracy and prevent double coverage by marking the areas that have already been sprayed.
-

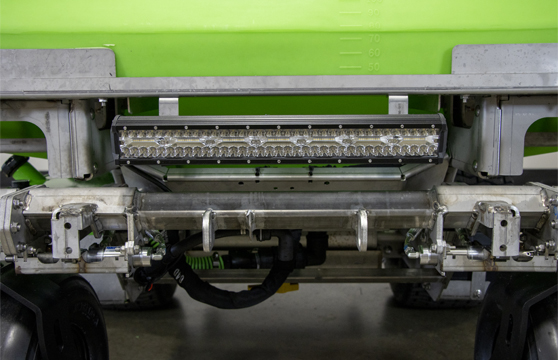

LED LIGHT BAR
LED lamps provide ample visibility.
-
HILLSIDE ASSIST SYSTEM
Lock and unlock the front caster wheels for added hillside stability.
-

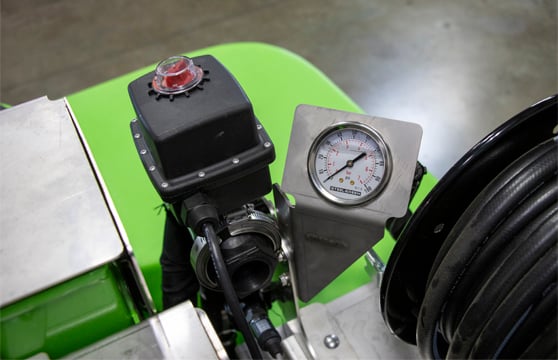

PRESSURE CONTROL SYSTEM
Maintain the desired spray pressure while turning on and off nozzles.
-
Spray Gun
The hose reel is equipped with a stainless steel short-pattern nozzle, ensuring an even spray rate. -

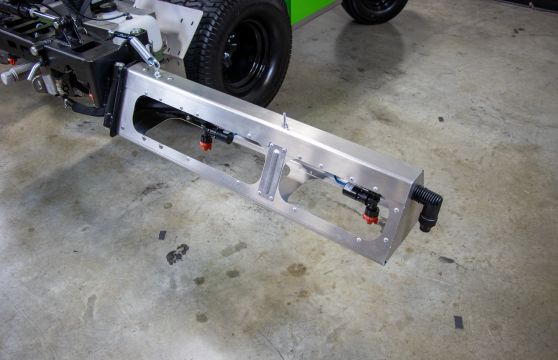

14’ ALUMINUM BOOM
Electro-hydraulic actuating rear boom with forward and reverse breakaway, turret nozzle bodies, 50 mesh line strainer, and foam marker. -

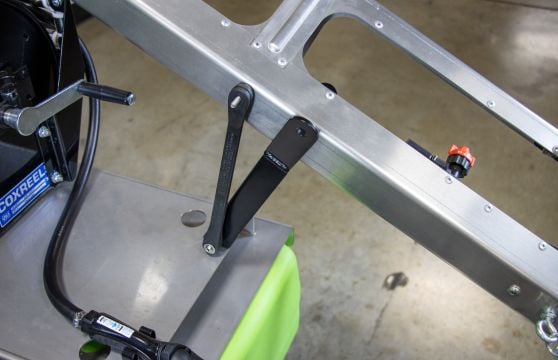

BOOM SADDLES
For storing booms in a forward lowered position while storing or transporting on or in a trailer.
